Shelf Risers for Rise Gardens (Gen 3)

Description

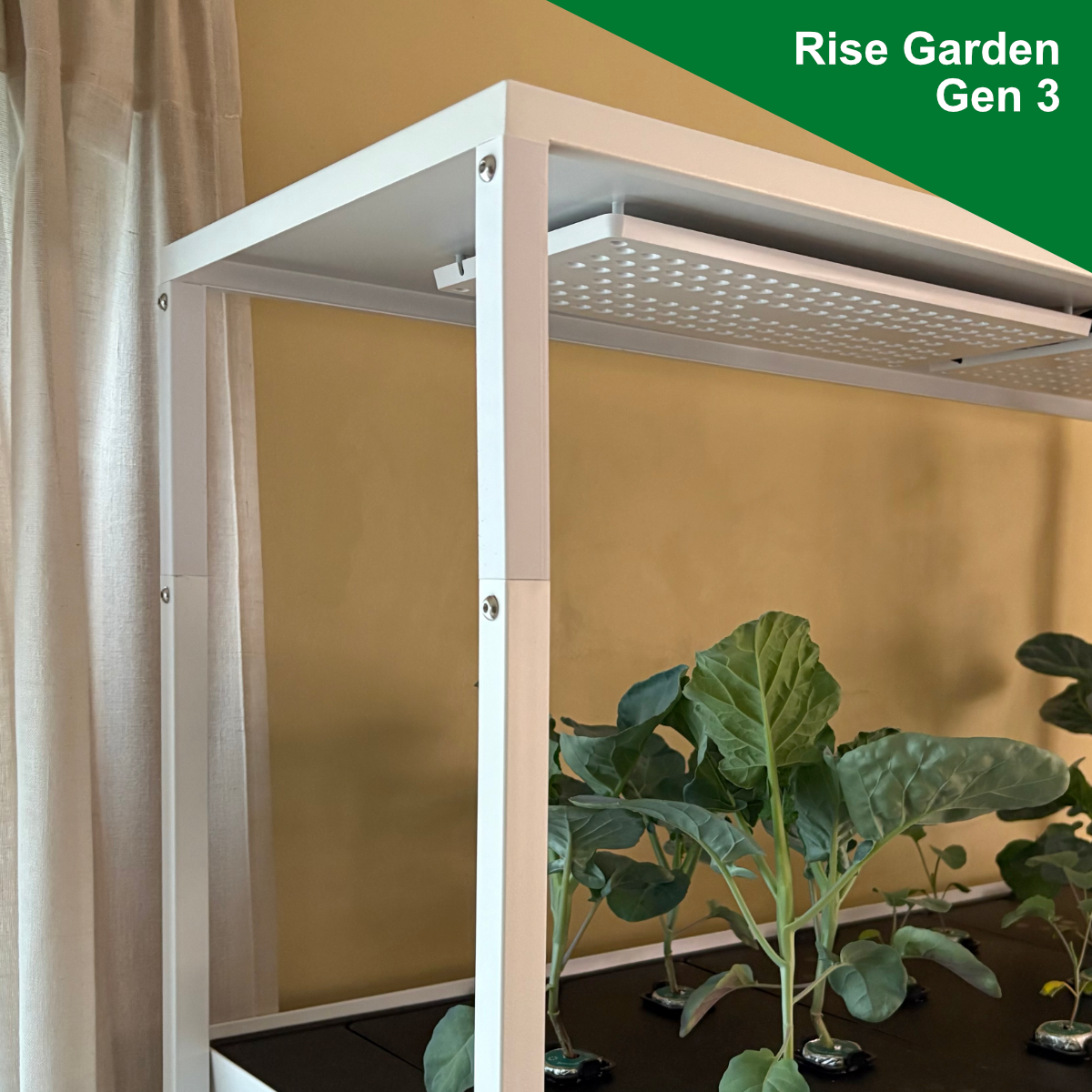

Grow large plants on all shelfs of your Gen 3 Rise Garden with these shelf risers. Add 152mm (6in) of grow height to the middle and/or top shelf of your garden giving them the same height as the taller bottom shelf. If you only have a 1-tier garden you can still use these risers if you want to give your plants some additional room to grow.

If using for the middle shelf you will need to order two additional long drain tubes from Rise.

Printing Instructions

• Material: PLA or PETG

• Perimeters: 3

• Infill: 20%

• Layer height: Any

Hardware

• 4xM5 Brass Heat Set Threaded Inserts (you will need 8x if you plan to install risers middle and top shelfs of a 3 tier garden).

• 4xM5 x 8mm Stainless Steel Screws (you will need 8x if you plan to install risers middle and top shelfs of a 3 tier garden).

• 2xLong Drain Tubes (only necessary if you are using the risers for the middle shelf of a 3 tier garden)

Pre-installation Assembly

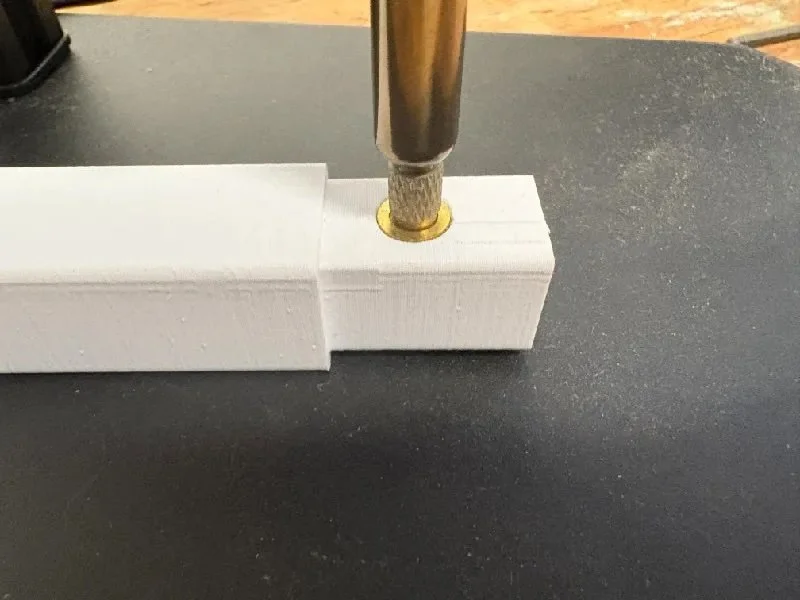

Use a soldering iron to install the 4x M5 heat set threaded inserts into the bottom of each of the risers.

Installation instructions
